مكان المنشأ:
الصين
اسم العلامة التجارية:
JINGNING
إصدار الشهادات:
CE、ZTC
رقم الموديل:
JDZ
الوثيقة:
اتصل بنا
فيديو

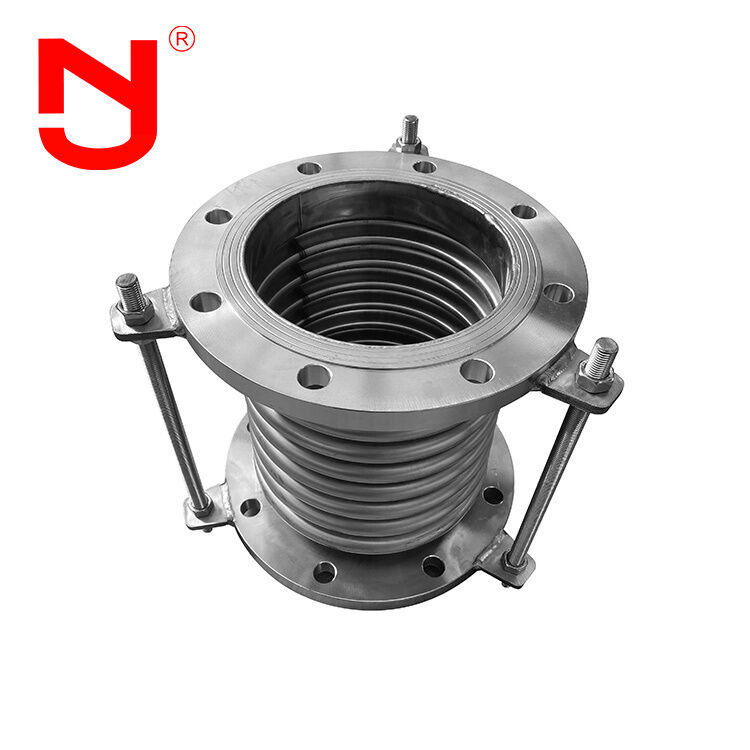

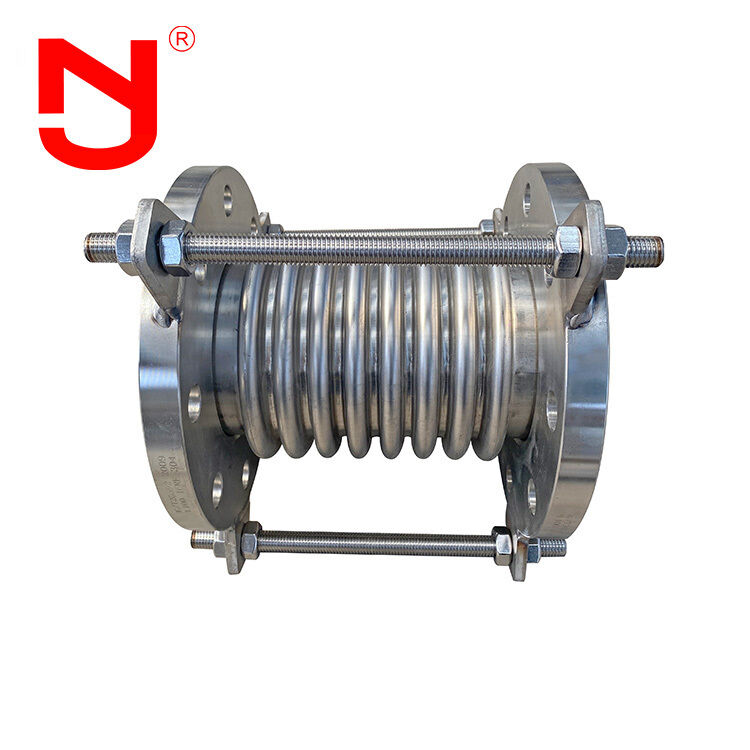

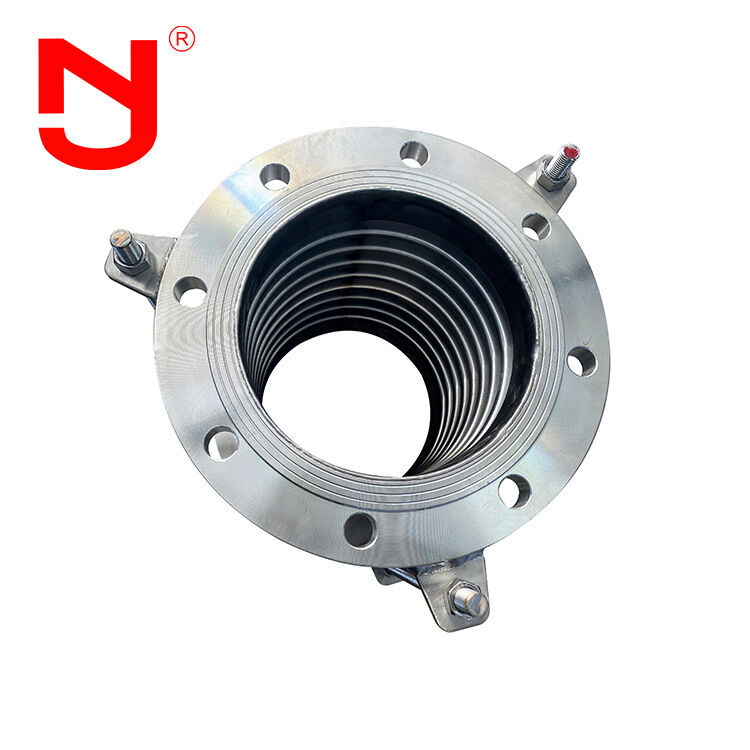

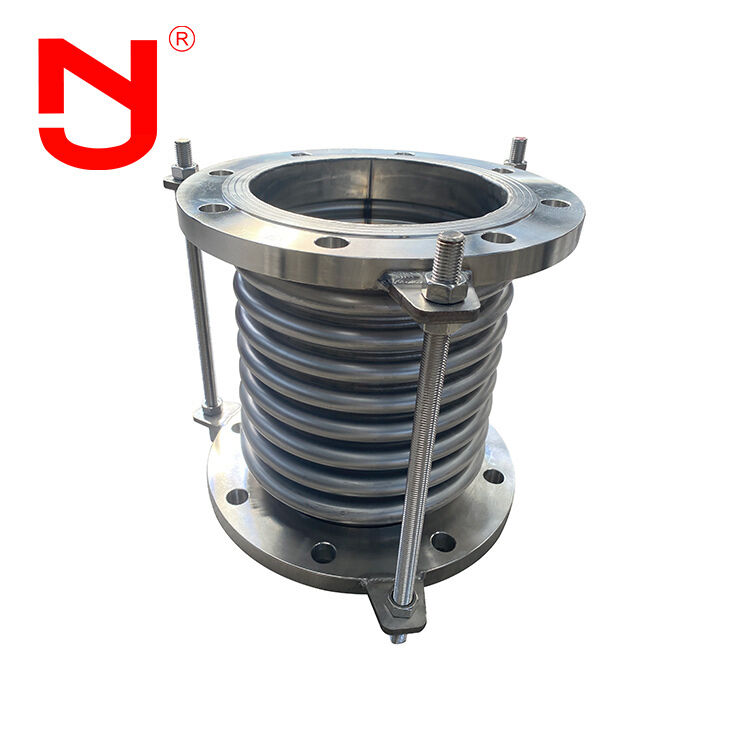

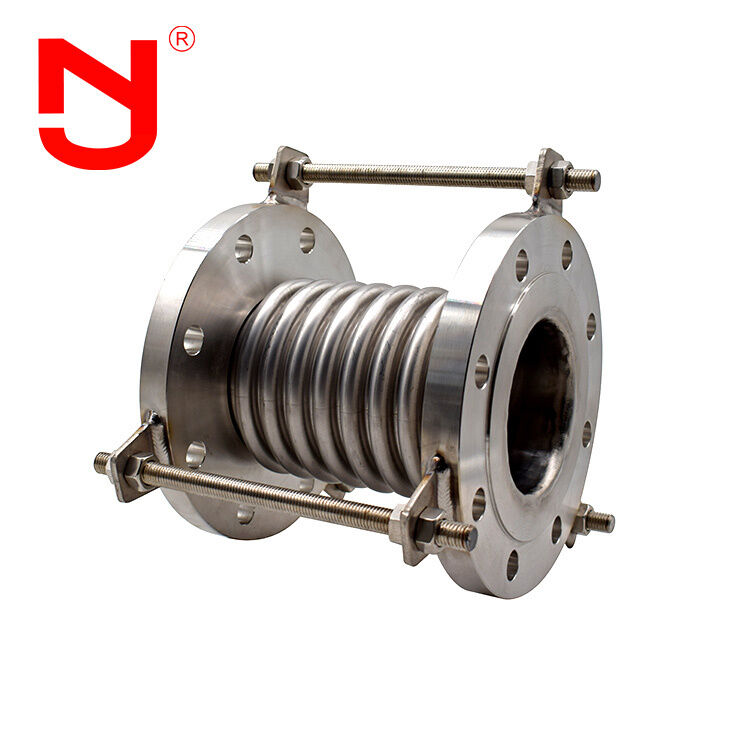

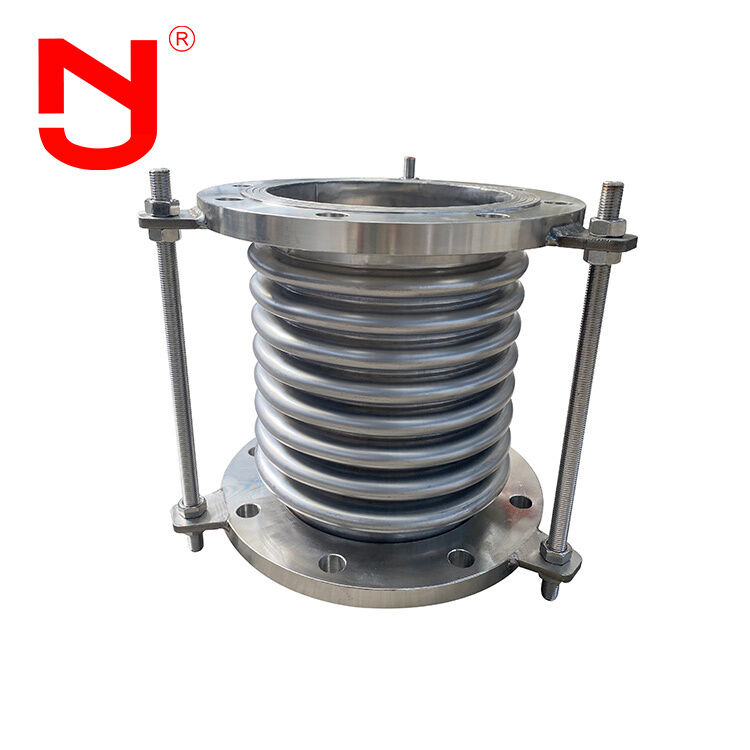

Our SS316 High Temperature Resistance Bellows Expansion Joints are engineered to provide exceptional flexibility and durability in demanding high-temperature environments. These joints effectively absorb thermal expansion, vibrations, and misalignments in piping systems, ensuring reliable operation under extreme conditions. The SS316 construction offers excellent corrosion resistance, enhancing longevity and reducing maintenance costs. Ideal for petrochemical, power generation, and high-temperature processing industries.
| Diameter (mm) | Pressure Grade (Mpa) | Available Area (cm²) | Max External Diameter (mm) | Length (mm) |
|---|---|---|---|---|
| 32 | 1.0/1.6/2.5 | 16 | 225 | 160-250/264-280 |
| 40 | 1.0/1.6/2.5 | 23 | 244 | 164-259/269-289 |
| 50 | 1.0/1.6/2.5 | 37 | 259 | 172-276/282-306 |
| 65 | 1.0/1.6/2.5 | 55 | 270 | 215-294/300-322 |
| 80 | 1.0/1.6/2.5 | 81 | 284 | 240-338/344-366 |
| 100 | 1.0/1.6/2.5 | 121 | 304 | 235-317/323-345 |
| 125 | 1.0/1.6/2.5 | 180 | 334 | 282-314/316-342 |
| 150 | 1.0/1.6/2.5 | 257 | 364 | 282-339/338-367 |
| 200 | 1.0/1.6/2.5 | 479 | 442 | 340-402/402-426 |
| 250 | 1.0/1.6/2.5 | 769 | 507 | 393-459/493-399 |
| 300 | 1.0/1.6/2.5 | 1105 | 562 | 464-525/564-565 |
| 350 | 1.0/1.6/2.5 | 1307 | 622 | 509-564/609-604 |
| 400 | 1.0/1.6/2.5 | 1611 | 562 | 522-566/622-628 |
| 450 | 1.0/1.6/2.5 | 1972 | 700 | 403-498/503-523 |
| 500 | 1.0/1.6/2.5 | 2445 | 760 | 431-523/531-554 |
| 600 | 1.0/1.6/2.5 | 3534 | 835 | 478-548/578-588 |
| 700 | 1.0/1.6/2.5 | 4717 | 1110 | 490/590 |
| 800 | 1.0/1.6/2.5 | 5822 | 1265 | 502/602 |
| 900 | 1.0/1.6/2.5 | 7620 | 1186 | /698 |
| 1000 | 1.0/1.6/2.5 | 9043 | 1286 | /692 |
Our high-quality bellows expansion joints are precision-engineered using advanced manufacturing techniques:
With over 17 years of design experience, we manufacture expansion joints meeting GB, ISO, DIN, ANSI, BS, JIS international standards and custom requirements.
Our bellows expansion joints are widely used in:
They compensate for thermal expansion, reduce vibration transmission, and accommodate foundation settlement in piping systems.
A: Yes, we provide OEM/ODM services including custom branding.
A: Standard lengths include L130, L152, L203, with custom lengths available.
A: Yes, we provide detailed drawings upon request.
A: We provide CE and ISO certifications.
A: Yes, we provide samples for quality evaluation.
