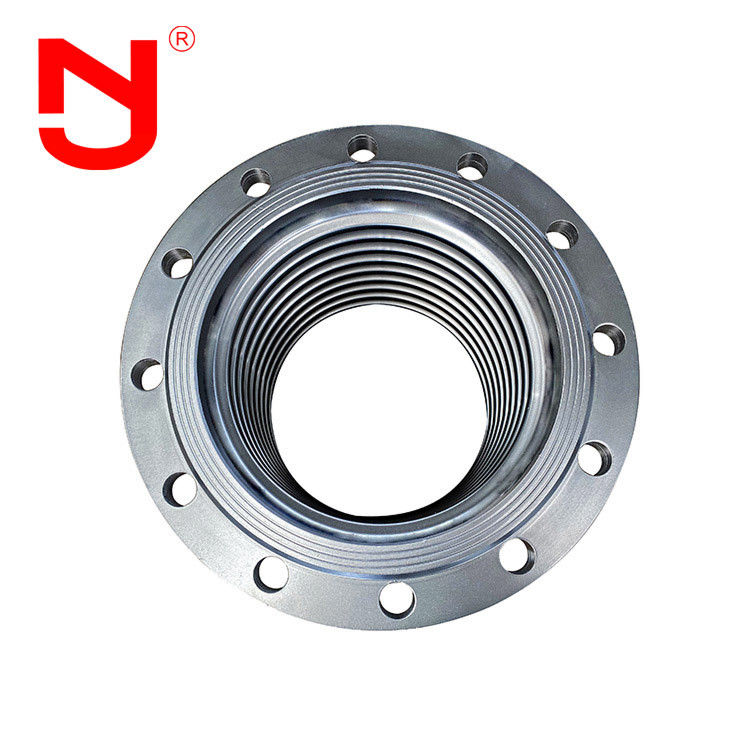

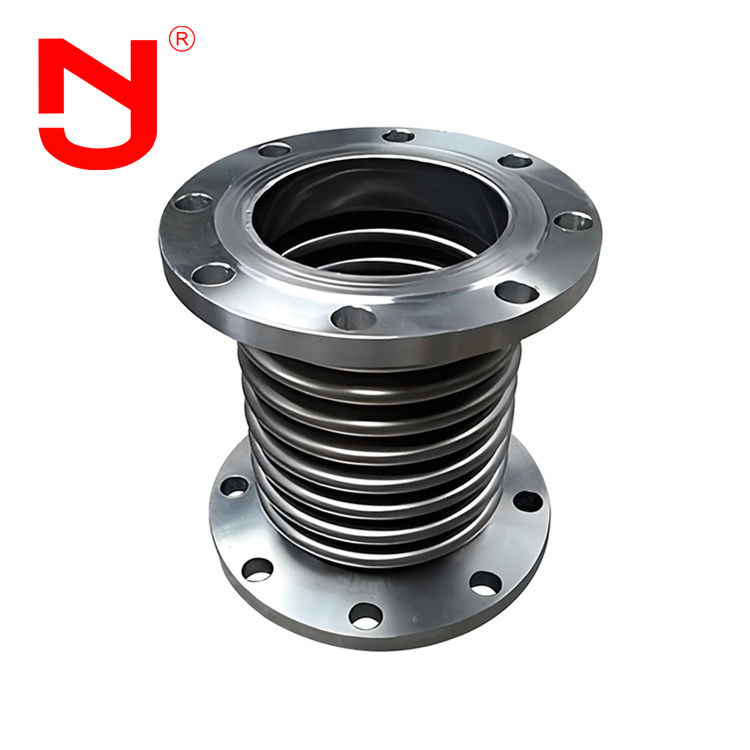

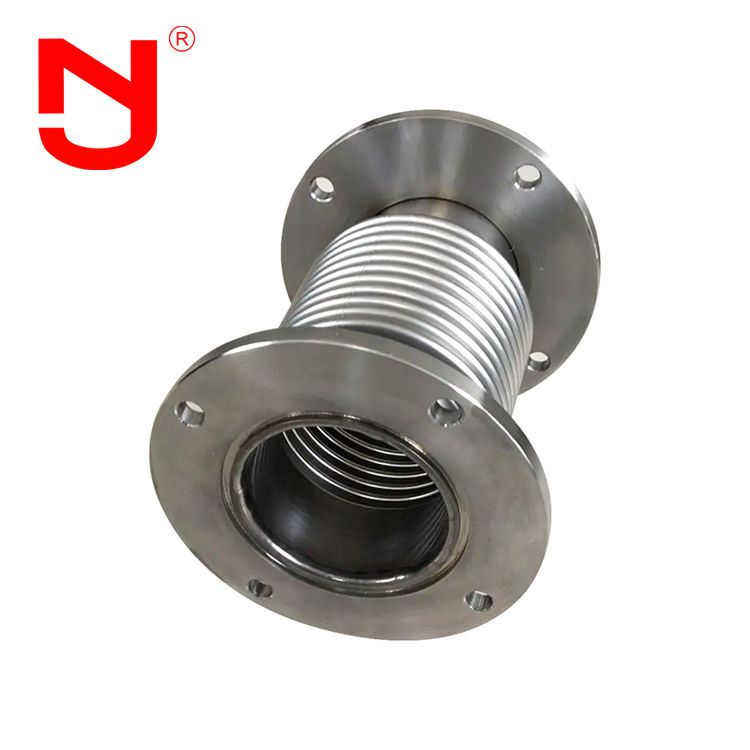

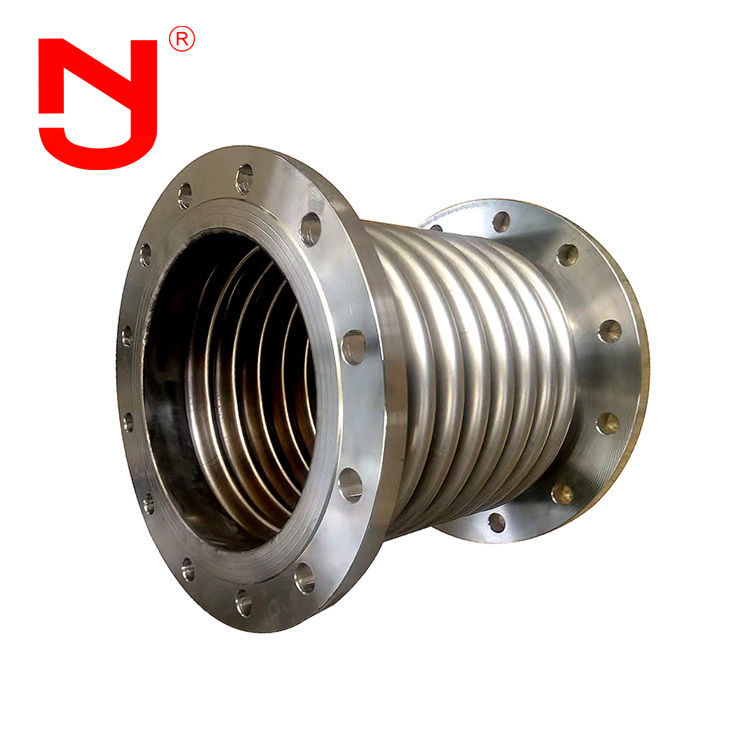

SS316 High Temperature Resistance Expansion Bellows for Pipes
Expansion Bellows for Pipes is flexible, convoluted metal components made of Stainless Steel 316. They are engineered to absorb thermal expansion, vibration, and movement in piping systems while withstanding sustained high temperatures and maintaining pressure containment, leveraging SS316's superior oxidation resistance and strength retention at elevated temperatures.
Performance of Expansion Bellows for Pipes
The main elastic element of Expansion Bellows for Pipes is stainless steel bellows. Through the expansion and bending of bellows, the flexible expansion joint compensates the pipeline in axial, transverse and angular directions. Bellows expansion can play the following roles:
1. The Expansion Bellows for Pipes absorbs the axial, transverse and angular thermal deformation of the pipeline.
2. Expansion Bellows for Pipes can absorb equipment vibration and reduce the influence of equipment vibration on pipeline.
3. Expansion Bellows for Pipes can absorb the pipeline deformation caused by earthquake and land subsidence.
Technique Parameter of Expansion Bellows for Pipes
|
Diameter (mm)
|
Pressure grade |
Available Area of Bellows (c㎡)
|
Max Size of External Diameter
|
Length |
|||
|
1.0 |
1.6 |
2.5 |
Flange
|
Tube
|
|||
|
32
|
20/26
|
18/63
|
15/98
|
16
|
225
|
160/250
|
264/280
|
|
40
|
20/24
|
18/89
|
15/98
|
23
|
244
|
164/259
|
269/289
|
|
50
|
20/70
|
18/70
|
15/106
|
37
|
259
|
172/276
|
282/306
|
|
65
|
26/44
|
22/55
|
15/138
|
55
|
270
|
215/294
|
300/322
|
|
80
|
34/33
|
28/41
|
19/68
|
81
|
284
|
240/338
|
344/366
|
|
100
|
40/75
|
35/93
|
25/54
|
121
|
304
|
235/317
|
323/345
|
|
125
|
38/59
|
34/74
|
29/117
|
180
|
334
|
282/314
|
316/342
|
|
150
|
40/62
|
34/78
|
29/92
|
257
|
364
|
282/339
|
338/367
|
|
200
|
59/52
|
53/58
|
46/65
|
479
|
442
|
340/402
|
402/426
|
|
250
|
87/35
|
79/39
|
48/78
|
769
|
507
|
393/459
|
493/399
|
|
300
|
87/37
|
79/41
|
71/47
|
1105
|
562
|
464/525
|
564/565
|
|
350
|
87/44
|
79/48
|
71/45
|
1307
|
622
|
509/564
|
609/604
|
|
400
|
87/43
|
79/47
|
71/47
|
1611
|
562
|
522/566
|
622/628
|
|
450
|
87/37
|
79/41
|
47/75
|
1972
|
700
|
403/498
|
503/523
|
|
500
|
87/68
|
79/75
|
71/45
|
2445
|
760
|
431/523
|
531/554
|
|
600
|
87/85
|
79/94
|
71/82
|
3534
|
835
|
478/548
|
578/588
|
|
700
|
87/77
|
79/85
|
71/103
|
4717
|
1110
|
490
|
590
|
|
800
|
102/102
|
94/112
|
71/95
|
5822
|
1265
|
502
|
602
|
|
900
|
102/97
|
94/107
|
80/123
|
7620
|
1186
|
/
|
698
|
|
1000
|
102/105
|
94/106
|
82/117
|
9043
|
1286
|
/
|
692
|
Expansion Bellows for Pipes details show
Production process of Expansion Bellows for Pipes
Do you know how is a high quality Expansion Bellows for Pipes made?Let's see with JINGNING.
Expansion Bellows for Pipes can be processed into different types according to different needs
Jingning has more than 17 years of design experience in manufacturing flexible expansion joint , rubber expansion joint, metal bellows joint, disassembly joint, pipeline and other industrial pipe fittings. The bellows expansion meets the international standards such as GB, ISO, DIN, ANSI, BS, JIS and the special requirements of customers.
Expansion Bellows for Pipes advantages
1. Expansion Bellows for Pipes is ex factory price
2. 17 years manufacturing experience, 5 years export experience
3. The bellows expansion has strict quality inspection, and the quality far exceeds the industry standard.
4. Various specifications of bellows expansion mold base customization and OEM
5. Free bellows expansion samples
6. Large inventory of bellows expansion
Expansion Bellows for Pipes application
Because of its flexibility, bellows expansion can compensate the temperature difference deformation or other deformation between equipment and pipeline, prevent vibration, reduce the thrust of pipeline on equipment, and adapt to the uneven settlement of oil tank foundation. The bellows expansion can be widely used in chemical industry, oil refining, electric power, light industry, atomic energy, metallurgy, machinery, instrument, ship, aerospace and other departments. With the wide application of power pipeline and heat pipeline in industry and civil field, the requirement of bellows expansion is higher and higher.
